Portable Analyzer (Portable Internet & IPTV Quality Meter)

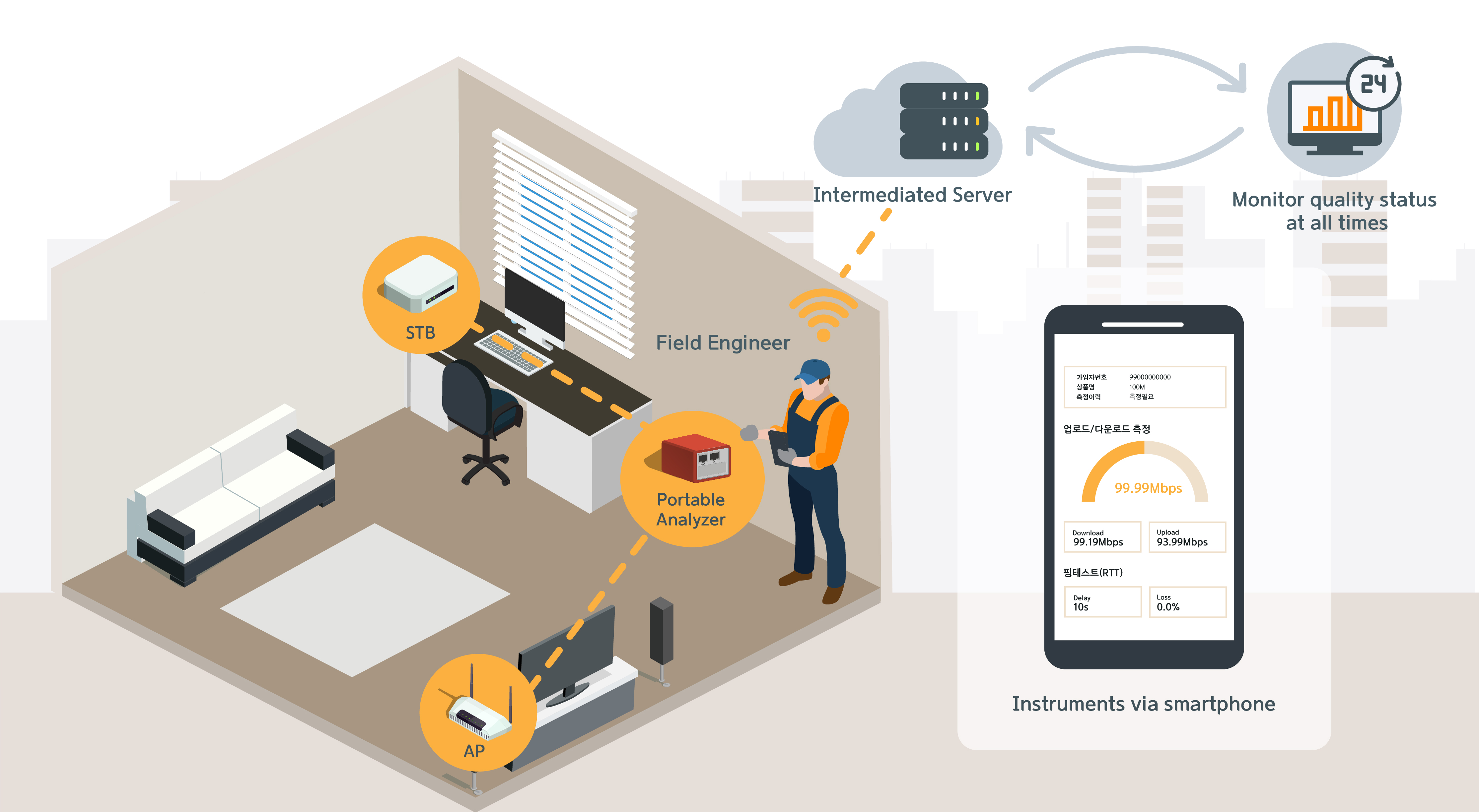

diagram-e

Portable Analyzer is a portable Internet & IPTV quality meter that can measure Internet quality, IPTV quality, and VOD quality. Structural design for physical and electrical shocks enables on-site network quality analysis without additional equipment and environmental settings, and manages quality of service at the national network level while monitoring measurement data across instruments.

Type

1G (NLPA-GN-A)
10G (NLPA-DGN-A)

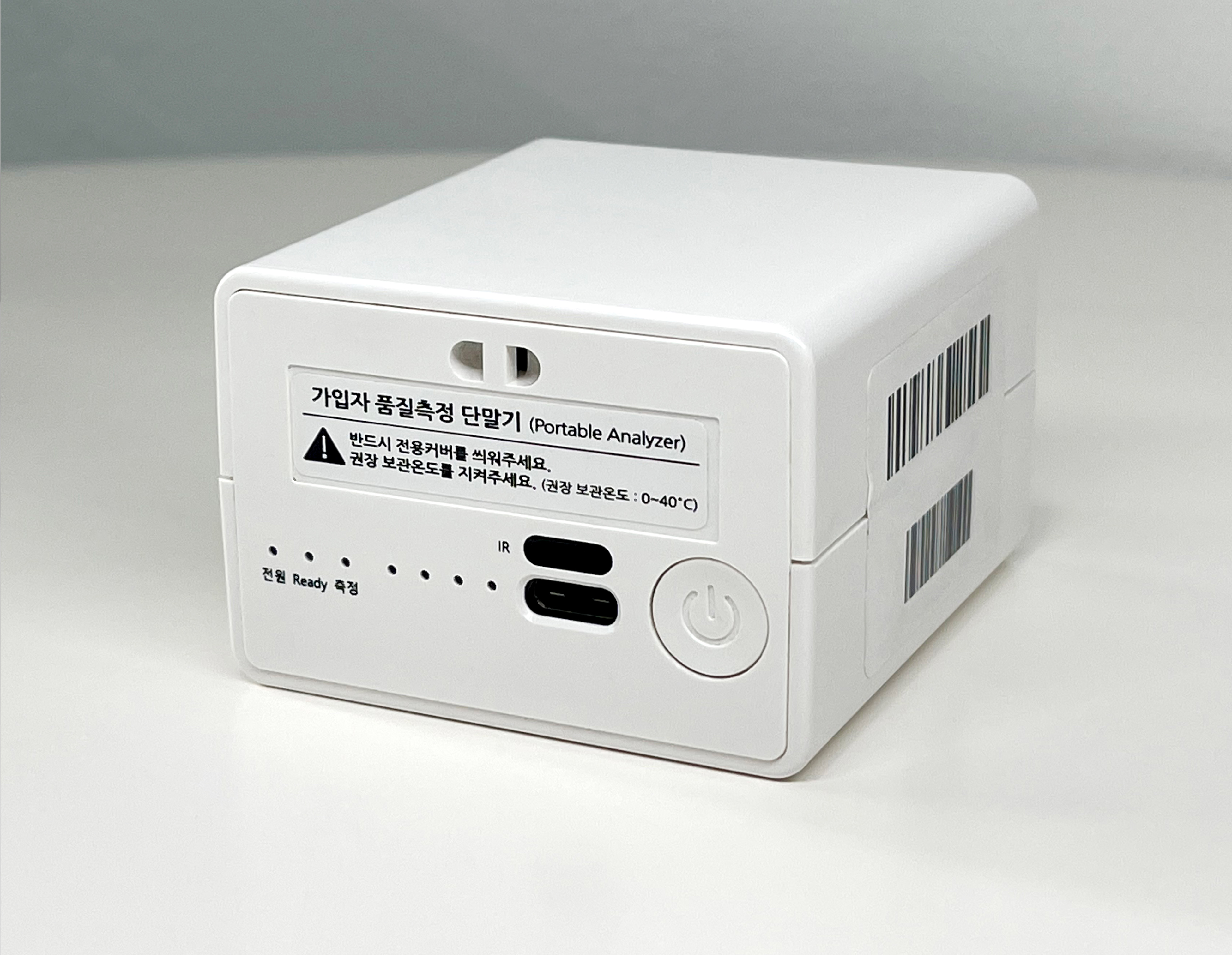

1기가 portable analyzer
Front

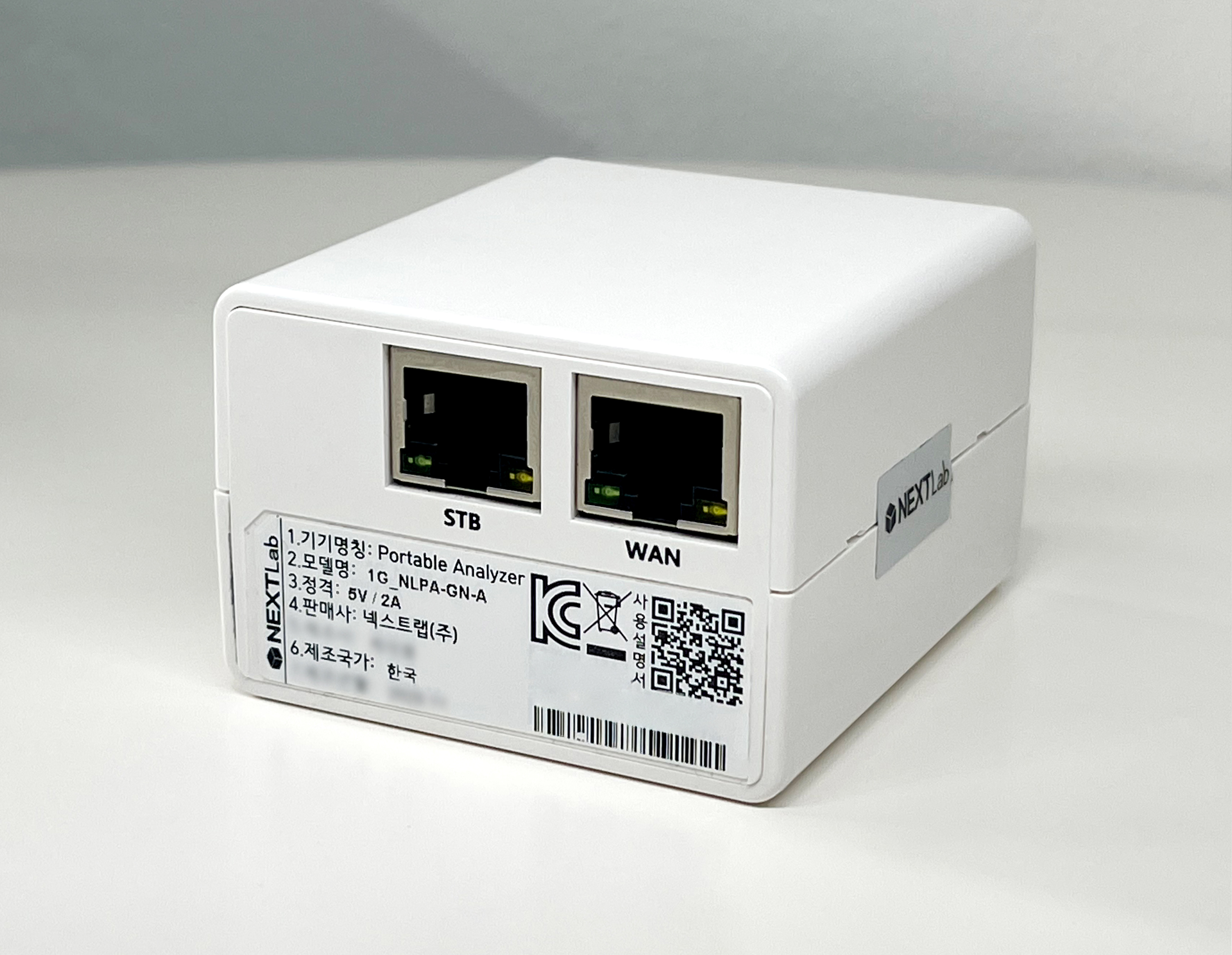

1기가portable analyzer
Back

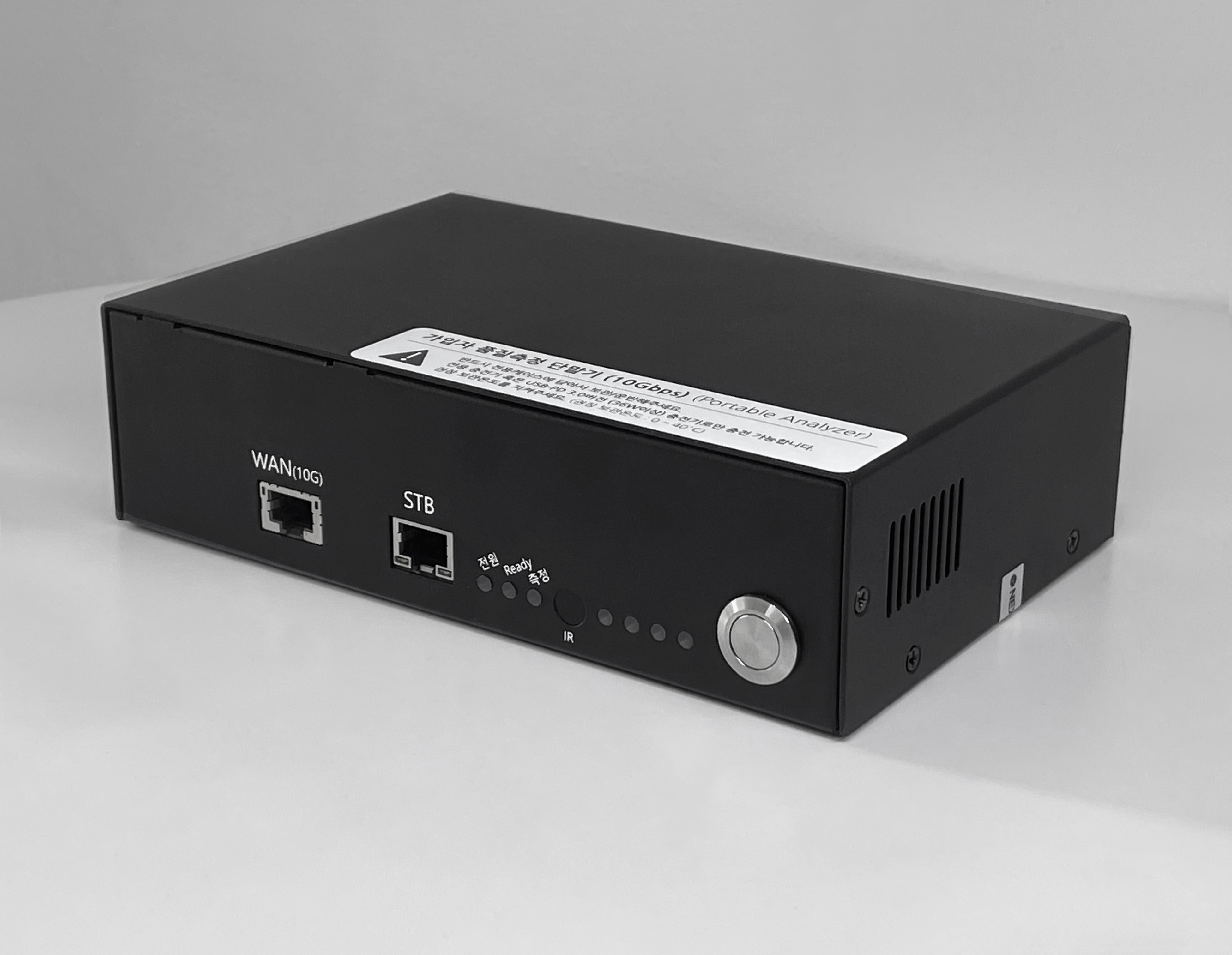

10기가portable analyzer
Front

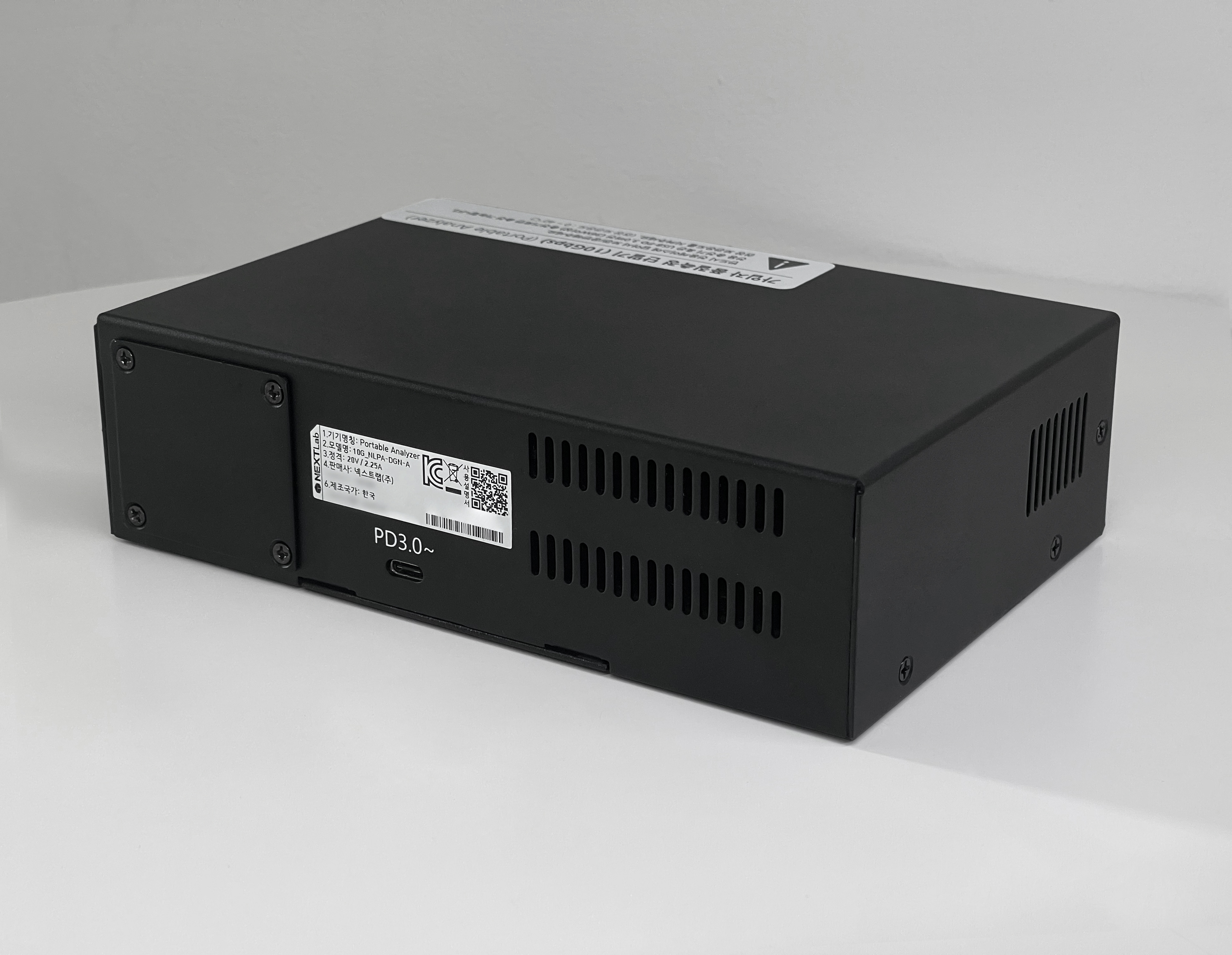

10기가 portable analyzer
Back

Main Function

IPTV Quality Measurement
  • Receive regional EPG information
  • Time spent on the real-time channel Join/Leave
  • After Join Real-Time Bitrate, Jitter, RTP Error Count on the Receive RTP Stream
  • ETSI TR 101 290 1st Priority based MPEG2-TS Packet Analysis
  • CRC (RX) Check
Internet Quality Measurement
  • Download, Upload speed measurement (Mbps Unit, Max./Mean Value)
  • RTT-based Delay, Loss
  • CRC(RX) Check
STB Error of judgment
  • N/W Eaulationl Jutter, Loss, Bandwidth, Measurement IP/Port
  • STB Log Extraction, Packet Mirroring
VOD Quality Measurement
  • VOD Play Bitrate
  • Automatically recognize advertisements
Other Features
  • IR Signal Out
  • Remote F/W Update
  • Disable stolen/missing terminals
  • Specify out-of-IP band measurement restrictions

Certified

kc

KC Certification
(Evaluation of suitability of broadcasting and communications equipment)

ctk

Environmental Test Certification
(Temperature, Vibration, Impact)
